Vertex 3D Anthracite External Drawer 40kg Height 131mm

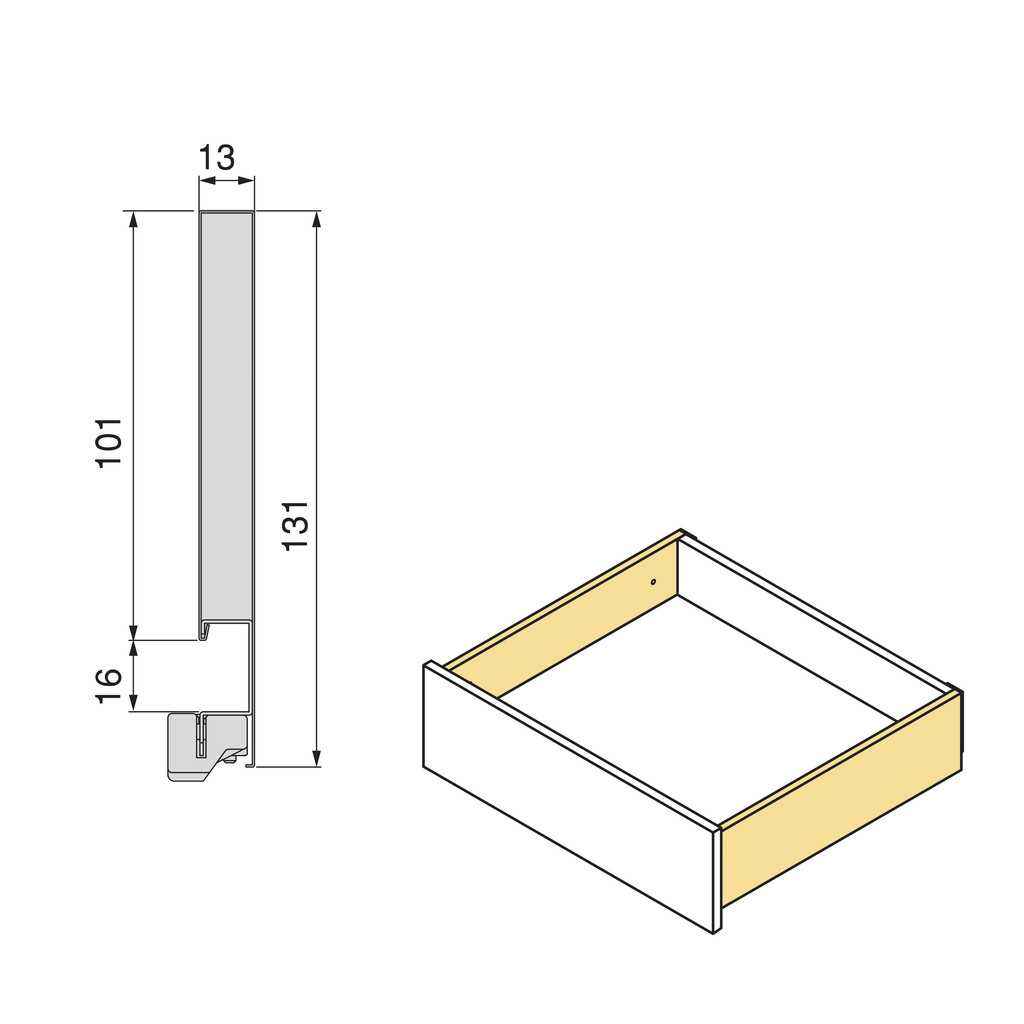

For board thickness 16 mm

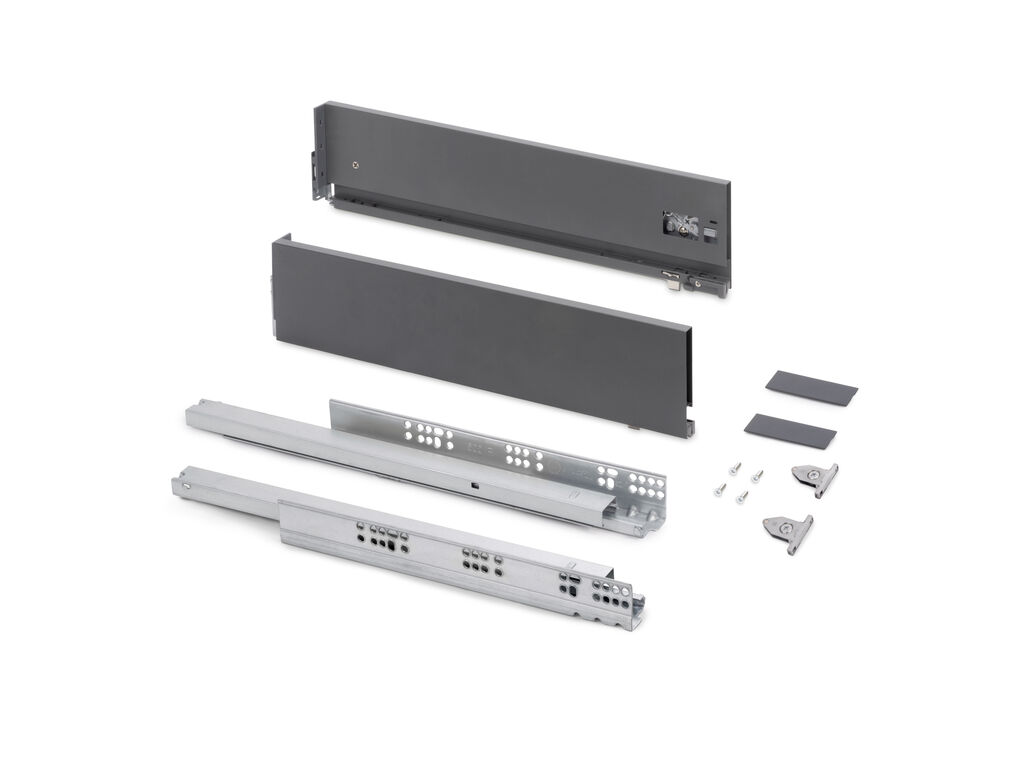

Vertex Kit for kitchen and bathroom drawer with all the necessary elements for its assembly. It is the optimal solution for your kitchen, bathroom or wardrobe furniture with an elegant design. Each kit is made up of all the elements necessary for mounting an external drawer of 131mm height, sized for a board thickness of 16mm for the bottom and back of the drawer. Includes: two sides, one set of soft-close runners, one set of covers and drawer front hooks.
The metal sides are made of steel with anthracite painted finish and allow the drawer front to be adjusted a 3D front: vertical by means of an eccentric of ±2 mm, horizontal ±1 mm, inclination -1,5/+4 mm. The guides are total extraction with soft closing and allow a maximum load of 40 Kg for the drawer.
You will only need the boards cut to the correct dimensions for the bottom, the back and the front of the drawer.
Documents
Specifications
| Drawer Depth | 500 mm or 450 mm or 400 mm or 350 mm or 300 mm or 270 mm |
| Drawer Colour | Anthracite |
