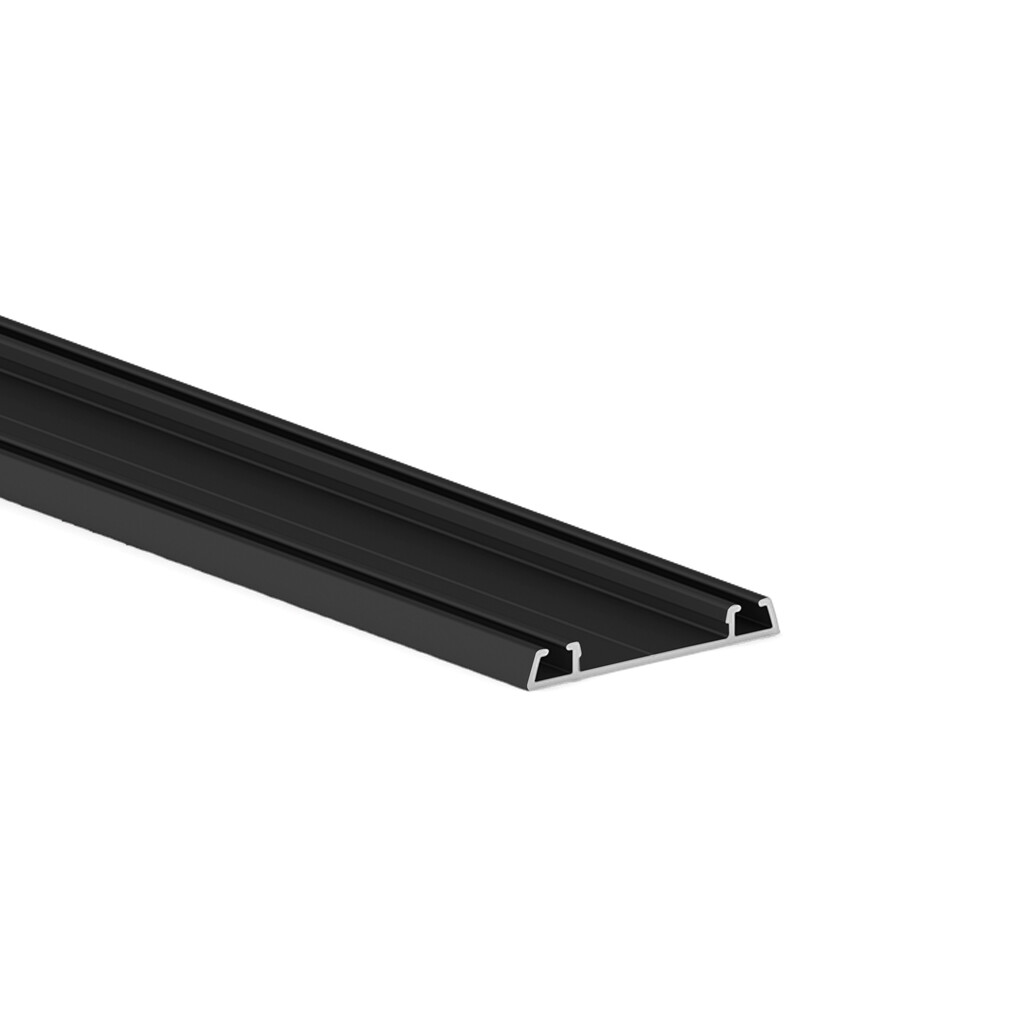

Placard lower track 3.9m for sliding door
- Channel lower track for a sliding bottom-running cabinet system. For the assembly of a Placard 74 unit with a maximum weight of 70 kg per door.

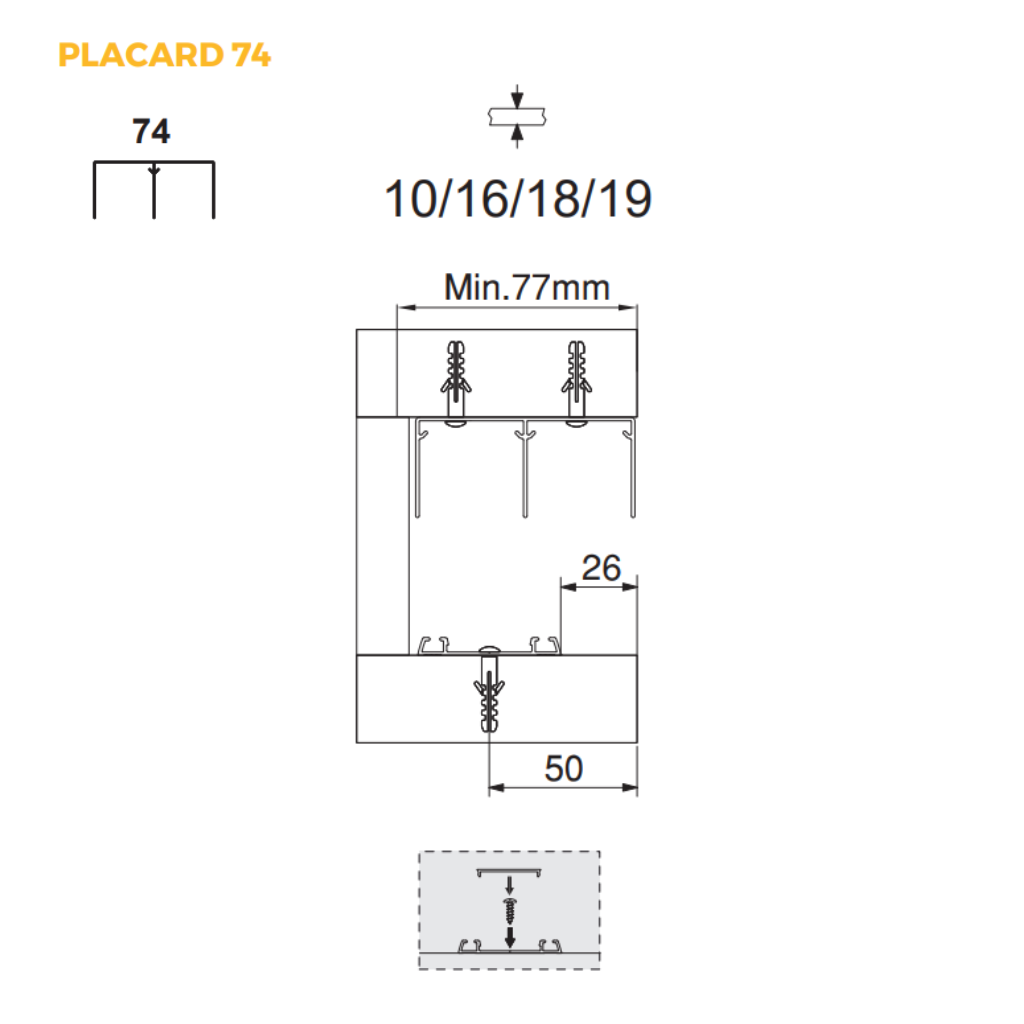

- The track is mounted inside the cabinet module and the doors will glide inside the cabinet module. Door thicknesses of 10, 16, 18 and 19 mm are possible.
- The track is supplied at a length of 3.9 m to be cut to the desired length.
- It is necessary to choose all the necessary components for the assembly of the cabinet: Tracks, Handles and wheels for the Channel version. The track can be installed together with the cover profile designed to cover the upper part of the track.
- Manufactured in aluminium.
Specifications
| Placard Colour | Black or White or Matt Anodized |
