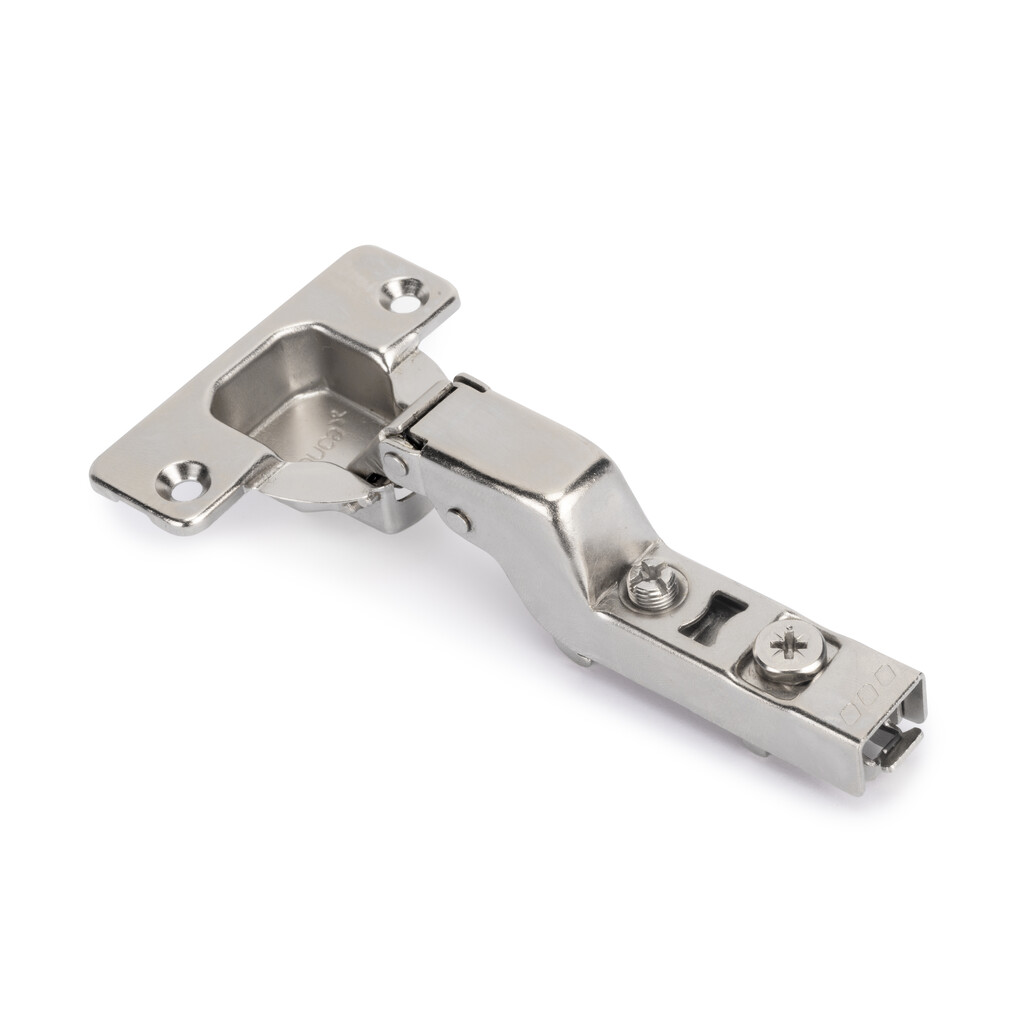

X92 105° Insert Soft Closing Screw (Nickel)
The X92 inset hinge with soft closing offers a 105° opening angle, clip mounting and soft closing for smooth, quiet operation. Compatible with doors from 14 to 24 mm thick, it features three-dimensional adjustment and eccentric adjustment for precise finishes.
- Integrated soft closing mechanism.
- Hinge to plate quick fixing system.
- For 14 ~ 24 mm door thickness.
- Adjustable in 3 dimensions.
- Distance to cup bore edge d = 3 ~ 7 mm.
- Depth adjustment by cam.
Documents
Internal Reference:
1065407
Barcode:
8432393281803
Specifications
| Opening Angle | 105° |
| Soft Closing | Yes |
| Hinges Colour | Nickel |
