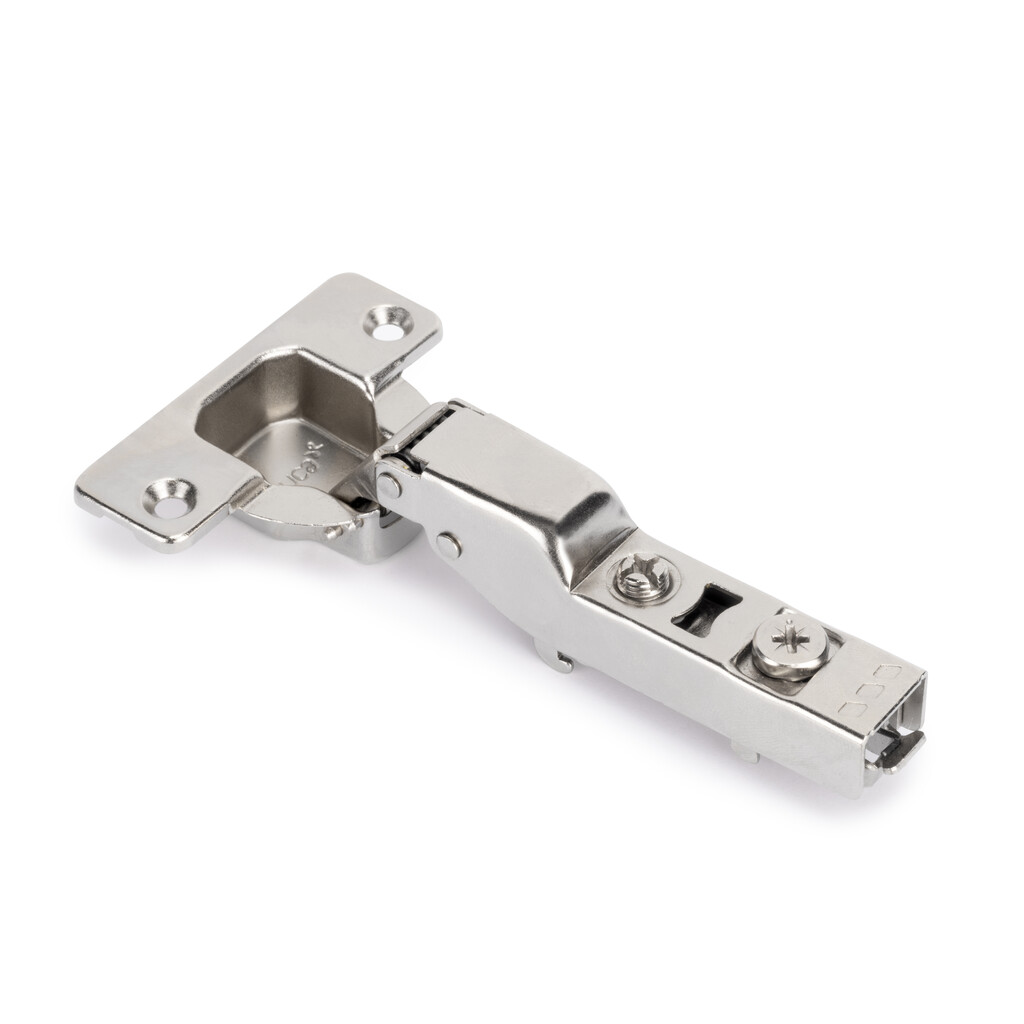

X92 105° Half Overlay Soft Closing Screw (Nickel)
The X92 full overlay hinge with soft closing combines a clip-on design with soft closing to ensure quiet, comfortable operation. Compatible with door thicknesses from 14 to 24 mm, it offers three-dimensional adjustment and eccentric adjustment for greater precision.
- Integrated soft closing mechanism.
- Hinge to plate quick fixing system.
- For 14 ~ 24 mm door thickness.
- Adjustable in 3 dimensions.
- Distance to cup bore edge d = 3 ~ 7 mm.
- Depth adjustment by cam.
Documents
Internal Reference:
1065207
Barcode:
8432393281780
Specifications
| Opening Angle | 105° |
| Soft Closing | Yes |
| Hinges Colour | Nickel |
