Vertex 3D Ανθρακί Εξωτερικό Συρτάρι 40kg Ύψους 178mm
For board thickness 16 mm

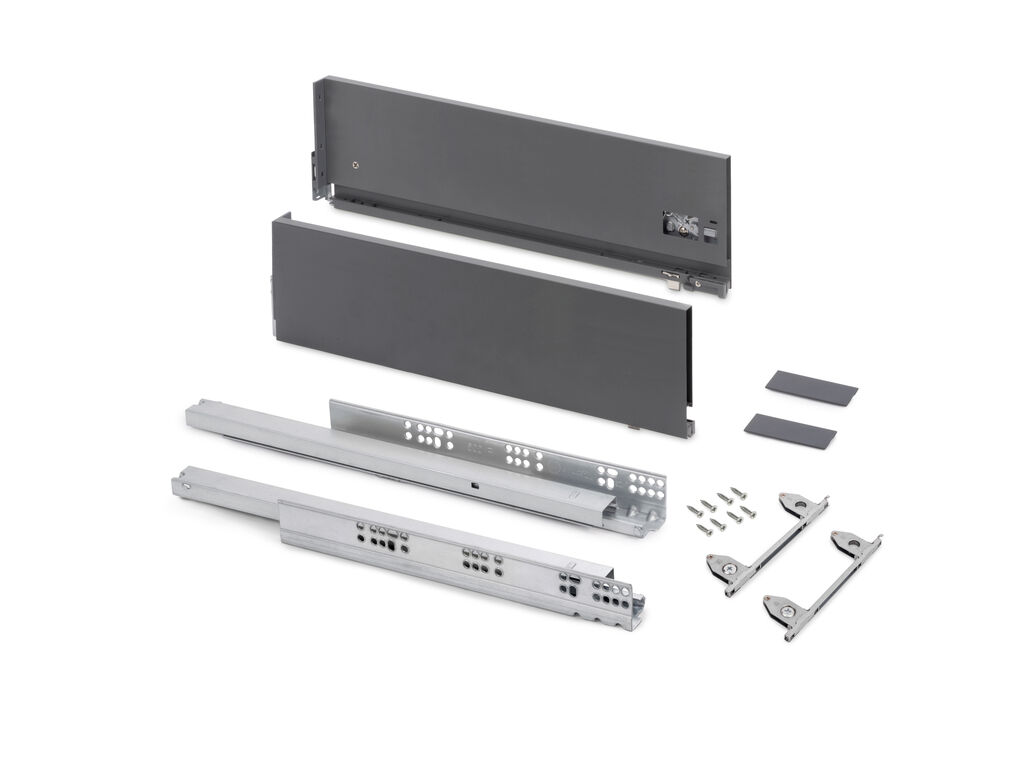

Vertex Kit for kitchen and bathroom drawer with all the necessary elements for its assembly. It is the optimal solution for your kitchen, bathroom or wardrobe furniture with an elegant design. Each kit is made up of all the elements necessary for mounting an external drawer of 178mm height, sized for a board thickness of 16mm for the bottom and back of the drawer. Includes: two sides, one set of soft-close runners, one set of covers and drawer front hooks.
The metal sides are made of steel with anthracite painted finish and allow the drawer front to be adjusted a 3D front: vertical by means of an eccentric of ±2 mm, horizontal ±1 mm, inclination -1,5/+4 mm. The guides are total extraction with soft closing and allow a maximum load of 40 Kg for the drawer.
You will only need the boards cut to the correct dimensions for the bottom, the back and the front of the drawer.
Έγγραφα
Specifications
| Βάθος Συρταριού | 500 mm ή 450 mm ή 400 mm ή 350 mm |
| Χρώμα Συρταριού | Anthracite |
